Chapter 1 — Getting Started

2 IF2 Network Reader User’s Manual

Overview of the IF2

The IF2 Network Reader is an RFID reader that provides connectivity

between tag data and an enterprise system.

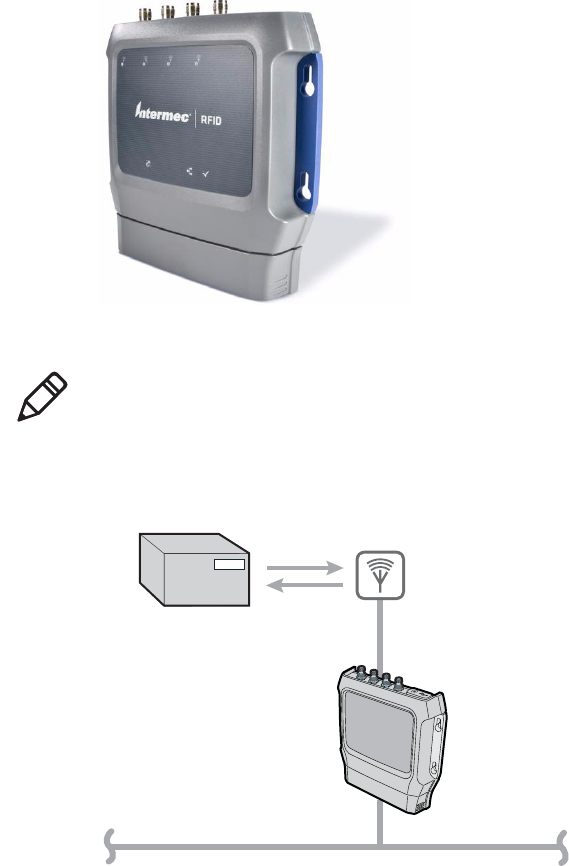

IF2 Network Reader

The reader forwards RFID tag data to the Ethernet network as shown

in the next illustration.

IF2 in a Wired Ethernet Network

Note: The IF2 does not ship with RFID antennas. For more

information on these accessories, contact your Intermec sales

representative.

Container

with RFID tag

RFID

antenna

IF2
